When we talk about accreditation, we're talking about unwavering quality you can trust. Our dedication to international measurement standards provides an extra layer of assurance for you, our valued customers. You can rest assured that our commitment to accreditation guarantees dependable results, leaving no room for compromise.
Connect with our team of seasoned professionals who bring a wealth of expertise to the table. They're well-versed in metrology-grade scans and possess a deep understanding of data capture intricacies. With their mastery of various 3D technologies and materials, you can expect unparalleled precision. Their extensive track record in handling complex projects and in-depth knowledge of GD&T ensures exceptional outcomes.
Transform your projects by harnessing the full potential of our state-of-the-art equipment and cutting-edge software. Bid farewell to wasted time and unnecessary expenses as we streamline your data collection process. Together, we'll explore your data objectives and customize our approach for optimal utilization, ultimately leading to improved project outcomes.
“Best in the business. Extremely knowledgeable, patient and technologically advanced…took time to provide and explain options I was unaware existed.”
‍
- Kenneth Beauchamp
“Engineering Manager for Med Device Company: The images and data provided by Nel Pretech are priceless. Having insight into injection molded parts on this level can really make the difference. The team over there is so supportive and professional. Great turn around time. Highly recommend.”
‍
- Andrew Fortier
“I couldn't be more pleased with the services Nel Pretech has been providing to me. Their data is well organized and accurate. I highly recommend them.”
‍
- Sam Clark
3d scanning is a technology used to collect a 3d data set of an object or part. The digitization process captures the exact size and shape of a part without need for cutting or destruction. The data is then used to construct a 3d model.
Surface variations can be analyzed with user-definable color patterns. Cross sections give the ability to see otherwise hidden features. Materials of different densities and surface finishes are a good fit for 3d scanning as well. There are a variety of technologies used to acquire x, y, z coordinates of a real-world object. If you choose to work with Nel PreTech, you’ll find we employ the newest 3d scanning technologies. Talk to our experts to find the appropriate fit for your application.
Some of the advanced 3d scanning services you’ll be able to choose from at Nel PreTech are structured light scanning and x-ray computed tomography. Each have their own benefits and applications. 3d scanning services.
Optical, non-contact, structured blue-light technology is used to measure different object sizes, surface finishes, and shape complexities with repeatable accuracy. This type of 3d scanning projects a fringe pattern across the surface of an object. The way the object distorts the light is recorded and turned into a dense point cloud with millions of points of data. Complex geometries and dense materials are a perfect fit for this type of 3d scanning.

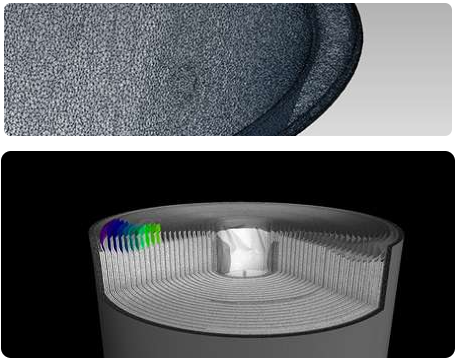

Non-destructive, x-ray computed tomography can provide precise examinations of internal structures and external components. This type of 3d scanning projects a beam of x-rays onto the object and a detector collects the data to form a 3d model. It is often used for flaw detection, failure analysis, assembly accuracy, reverse engineering applications, metrology, and 3d measurement.
Our expert engineers are on standby, ready to help with your complex scanning needs.
A major consumer product company struggles to develop, approve, and launch multiple high-level cavitation molds for high-volume production & global distribution.
Computed tomography and value-add services from Nel PreTech.
Client saves $1 million in direct cost and gains $60 million in cash flow four months sooner.
Major grill manufacturer reaches out with malfunctioning glow plugs.
Industrial CT scanning (x-ray material testing) provides digital 3D x-ray images of internal components of the glow plug & finds a wire break inside the heating device.
Client is able to investigate the root cause of the glow plug failure and fix the problem.
Global OEM medical device company needs help developing and launching drug delivery pumps.
CT scanning and value-add services create a turnkey solution to give the client a competitive advantage.
20 new tools in 20 weeks.
