Dimensional Inspection Services for Regulatory Compliance in Aerospace, Automotive, and Medical Manufacturing

Why Dimensional Inspection Matters in Regulatory Manufacturing

In regulated manufacturing environments, dimensional inspection serves as objective evidence that manufacturing processes remain capable of producing conforming parts. Aerospace, automotive, and medical device manufacturers rely on dimensional metrology not only to verify nominal geometry, but to support process validation, supplier qualification, production release, and audit readiness.

Modern quality systems increasingly depend on traceable measurement data to demonstrate:

• conformance to engineering requirements
• process capability
• manufacturing consistency
• and long-term configuration control

When dimensional data lacks traceability, repeatability, or statistical reliability, the integrity of the broader quality system becomes difficult to defend during audits, customer reviews, or validation activities.

This is why regulated manufacturers need accredited dimensional inspection providers. This ensures measurement systems are calibrated, and inspection methodologies are documented and aligned with standards such as:

• AS9102
• IATF 16949
• ISO 13485
• FDA 21 CFR Part 820
• ISO/IEC 17025

Dimensional Inspection in a Compliance-Driven Environment

Dimensional inspection involves evaluating manufactured components against engineering drawings, CAD models, GD&T requirements, and functional tolerances using calibrated metrology equipment.

Depending on the application, this may include:

• Coordinate Measuring Machines (CMMs)
• Optical and vision-based systems
• Blue light and laser scanning
• Industrial computed tomography (CT)
• Surface profilometry
• Precision handheld instrumentation

In regulated industries, inspection activities extend beyond simple pass/fail verification. Measurement systems must produce data that is:

• traceable to recognized standards
• repeatable across operators and environments
• reproducible over time
• appropriate for the tolerance band being evaluated

A technically sound inspection process also considers:

• measurement uncertainty
• fixture stability
• datum strategy
• environmental controls
• measurement system capability

These factors directly influence whether dimensional data can withstand scrutiny during audits, process validations, or supplier quality reviews.

The Relationship Between Dimensional Data and Quality Systems

Dimensional inspection is deeply integrated into modern quality management systems. Measurement data supports far more than isolated part acceptance.

Accurate dimensional results are commonly used to:

• validate manufacturing processes
• establish baseline production data
• support capability studies
• monitor process drift
• investigate nonconformances
• verify corrective actions

For critical-to-quality (CTQ) features, dimensional variation can directly affect assembly alignment, sealing performance, fatigue life, fluid flow, or device functionality. Because of this, regulators and customers increasingly expect manufacturers to demonstrate not only part conformance but sustained statistical control over critical characteristics.

This distinction is important.

A single conforming part does not prove a manufacturing process is capable. Regulatory compliance often requires evidence that the process itself remains stable, repeatable, and controlled over time.

Supporting AS9102 First Article Inspection in Aerospace

Within aerospace manufacturing, dimensional inspection plays a central role in AS9102 First Article Inspection Reporting (FAIR).

AS9102 requires manufacturers to validate that initial production parts fully conform to engineering drawings, specifications, and design intent before full-scale production begins.

Inspection activities supporting AS9102 commonly include:

• verification of all ballooned drawing characteristics
• GD&T evaluation
• traceable dimensional reporting
• documentation linking measured results directly to engineering requirements

Aerospace assemblies often involve tight tolerances and complex datum structures. This is where the inspection strategy becomes critical. Measurement systems must be capable of resolving features within the required uncertainty limits while maintaining repeatability across production lots.

Accurate FAIR data establishes:

• baseline manufacturing capability
• configuration accountability
• objective evidence for customer and regulatory review

Poorly controlled measurement systems can introduce uncertainty into the entire production approval process.

Supporting PPAP and Process Validation in Automotive Manufacturing

In automotive manufacturing, dimensional inspection supports the Production Part Approval Process (PPAP) by demonstrating that manufacturing processes can repeatedly produce parts within specification.

Unlike basic part verification, PPAP focuses heavily on process consistency and long-term capability.

Dimensional inspection data is commonly used for:

• dimensional results documentation
• process capability studies
• tolerance analysis
• control plan validation
• statistical process control (SPC) activities

For high-volume production environments, manufacturers must understand not only whether a dimension is conforming, but whether the process remains statistically stable over time.

This often requires evaluation of:

• Cp and Cpk performance
• measurement system analysis (MSA)
• GR&R studies
• process variation trends

Inspection workflows supporting PPAP must therefore maintain:

• standardized measurement procedures
• calibrated equipment traceability
• consistent datum alignment strategies
• controlled reporting methodologies

Reliable dimensional data allows manufacturers to identify process drift early, reduce scrap risk, and maintain production stability across long manufacturing runs.

Supporting FDA and Medical Device Quality Requirements

Medical device manufacturers operate within heavily documented quality environments where dimensional inspection supports both product verification and risk management activities.

Under FDA and ISO 13485 quality systems, manufacturers must demonstrate that critical product characteristics are consistently controlled throughout development and production.

Dimensional inspection commonly supports:

• design verification
• process validation
• incoming inspection
• production release
• nonconformance investigations

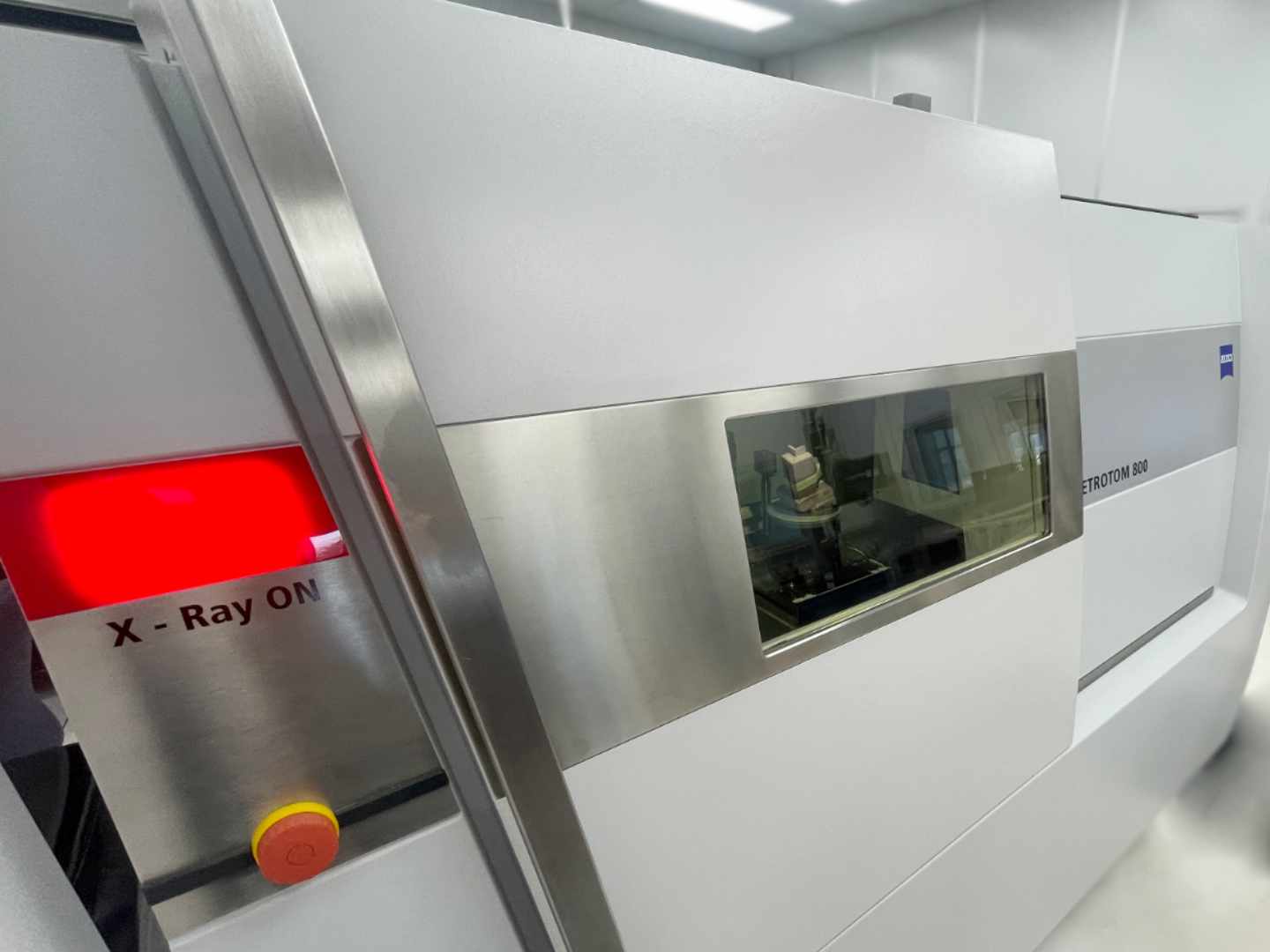

For medical components with complex internal geometries or inaccessible features, non-destructive metrology methods such as industrial CT scanning provide additional advantages. CT inspection allows manufacturers to evaluate:

• internal assemblies
• wall thickness
• voiding
• alignment conditions
• hidden defects

without sectioning or destroying the component.

This capability is especially valuable for:

• implantable devices
• micro-scale assemblies
• molded components
• additive manufacturing applications

Because medical manufacturing often involves extended documentation requirements, inspection records must be fully traceable and support audit readiness throughout the product lifecycle.

Traceability, Measurement Uncertainty, and Audit Readiness

Regulatory compliance depends heavily on the integrity of measurement data.

Traceability ensures that dimensional results can be linked back to recognized standards through documented calibration chains. Repeatability and reproducibility demonstrate that the measurement process remains stable across operators, equipment, and time.

Equally important is measurement uncertainty.

In high-precision applications, uncertainty analysis helps determine whether the selected inspection method is capable of reliably evaluating the specified tolerance range. Without a properly controlled measurement process, even conforming dimensional data may become difficult to defend during audits or customer investigations.

Audit-ready dimensional inspection programs typically include:

• calibrated and documented equipment records
• validated inspection procedures
• environmental monitoring
• controlled revision management
• operator training documentation
• traceable digital reporting

Well-structured documentation provides confidence that measurement results are technically valid and consistently generated.

The Role of Dimensional Inspection in Process Control

Dimensional inspection is not limited to final acceptance activities. In mature manufacturing environments, metrology functions as an active process control tool.

During early production phases, dimensional analysis helps manufacturers:

• identify sources of variation
• optimize tooling
• refine manufacturing parameters
• validate production readiness

As production scales, ongoing inspection activities monitor:

• process drift
• tooling wear
• fixture stability
• long-term dimensional trends

When dimensional variation begins to shift toward specification limits, inspection data can trigger corrective actions before nonconforming product reaches downstream operations or customers.

This feedback loop is particularly important in regulated manufacturing, where uncontrolled process changes can affect compliance status, product performance, and customer approval.

The Value of External Dimensional Inspection Services

Many manufacturers encounter limitations in internal metrology capacity due to:

• increasing production complexity
• staffing shortages
• equipment constraints
• or elevated regulatory demands

External dimensional inspection laboratories help manufacturers expand inspection capability without the significant capital investment associated with:

• metrology equipment acquisition
• calibration programs
• software licensing
• environmental controls
• and specialized personnel training

Accredited inspection providers also offer access to advanced measurement technologies and established quality systems. Objective third-party measurement data generated under these controlled, standardized procedures can strengthen compliance credibility.

For manufacturers managing production surges, qualification projects, or audit preparation activities, external metrology support provides flexibility while maintaining technical rigor.

Dimensional Metrology as a Foundation for Regulatory Compliance

Dimensional inspection is fundamentally tied to manufacturing risk reduction, process validation, and long-term quality system performance.

Across regulated manufacturing, dimensional data serves as critical evidence that products and processes remain aligned with engineering intent, regulatory expectations, and customer requirements.

Effective dimensional inspection programs combine:

• traceable measurement systems
• validated methodologies
• statistical process understanding
• and technically defensible reporting practices

Organizations that invest in structured metrology processes place themselves in a stronger position to:

• reduce nonconformance risk
• maintain audit readiness
• accelerate qualification activities
• and sustain manufacturing consistency over time

Nel PreTech applies advanced dimensional metrology and industrial CT inspection under ISO/IEC 17025 accreditation through A2LA. Our team supports manufacturers requiring technically rigorous inspection data for regulatory compliance, process validation, production qualification, and complex measurement challenges across regulated industries.
